Blood Pressure Charts

Build blood pressure charts showing select percentile curves over age by sex, height, and source.

Usage

bp_chart(
  bp = c("sbp", "dbp"),
  male = 0:1,
  height = NA,
  height_percentile = NA,
  default_height_percentile = 0.5,
  p = c(0.01, 0.05, 0.1, 0.25, 0.5, 0.75, 0.9, 0.95, 0.99),
  source = getOption("pedbp_bp_source", "martin2022")
)

Arguments

bp

character vector controlling if the systolic and/or the diastolic pressures are plotted

male

integer value, 1 = male, 0 = female

height

numeric, in centimeters, can be missing. See Details.

height_percentile

height percentile to use; range from [0, 100]. See Details.

default_height_percentile

default height percentile to use if height is missing; range (0, 100).

p

a numeric vector of the percentiles, provided in values between 0 and 1, to plot

source

the method, or data set, to use as the reference. See Details.

Examples

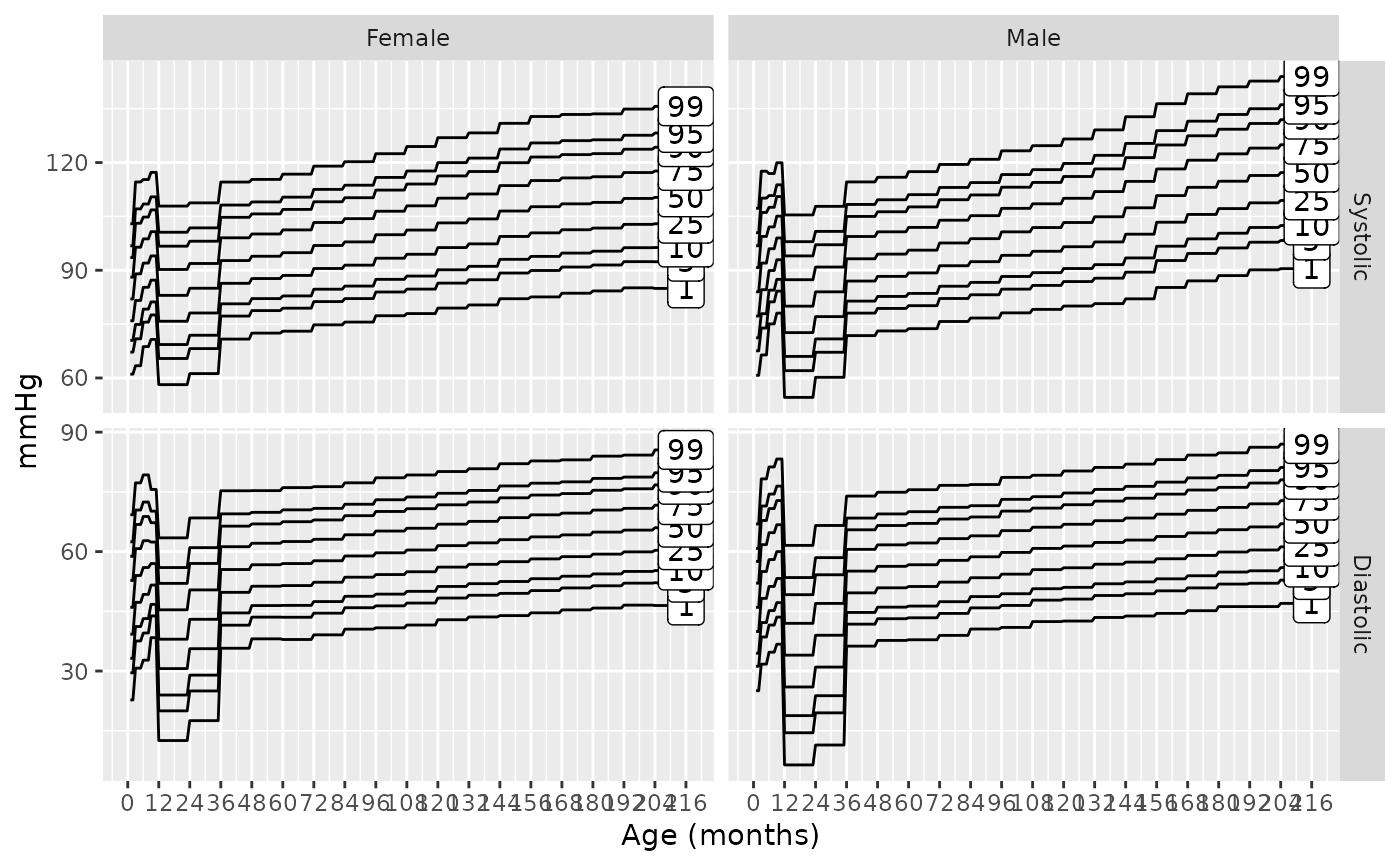

bp_chart(male = 0:1)

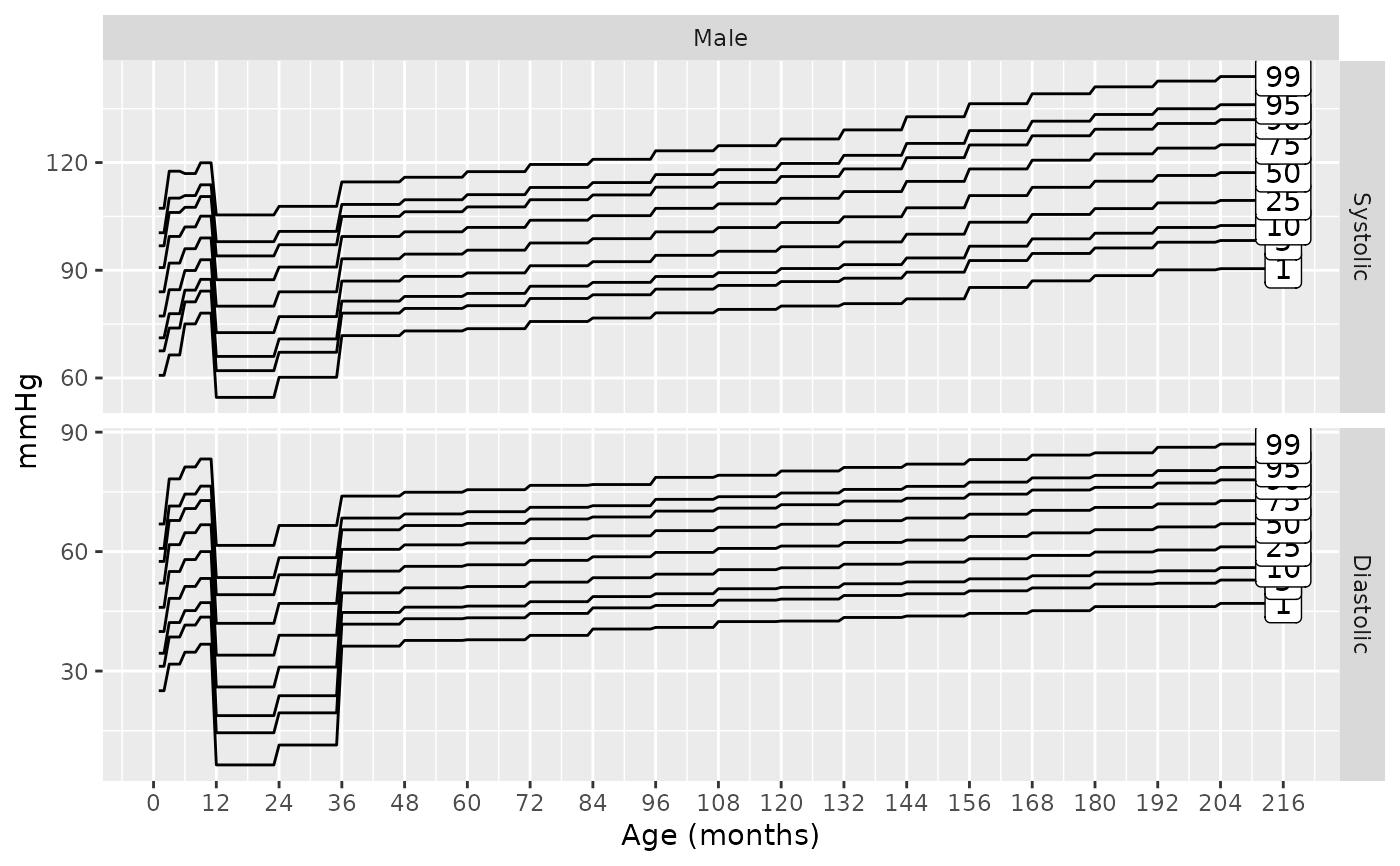

bp_chart(male = 1)

bp_chart(male = 0)

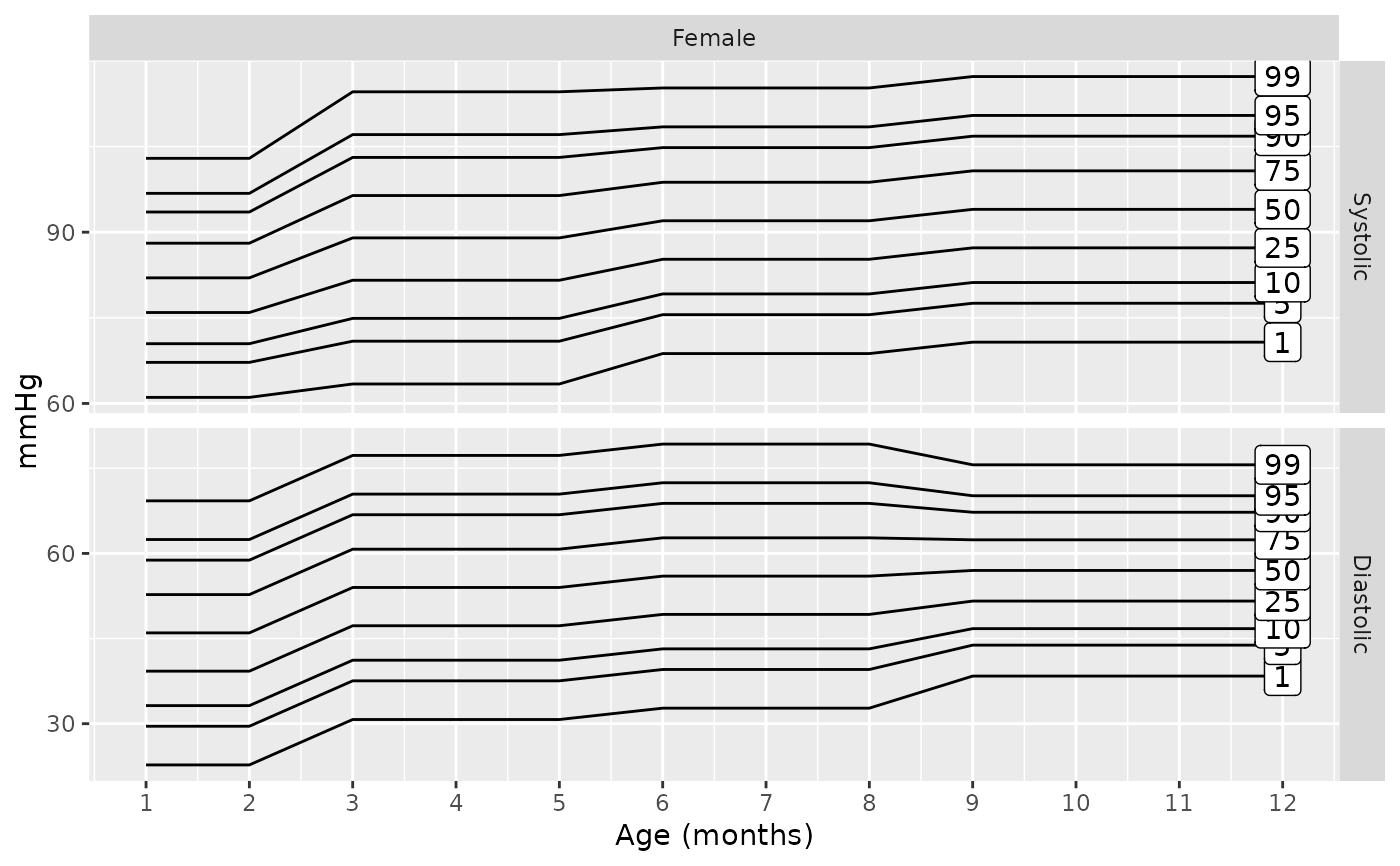

bp_chart(male = 0, source = "gemelli1990")

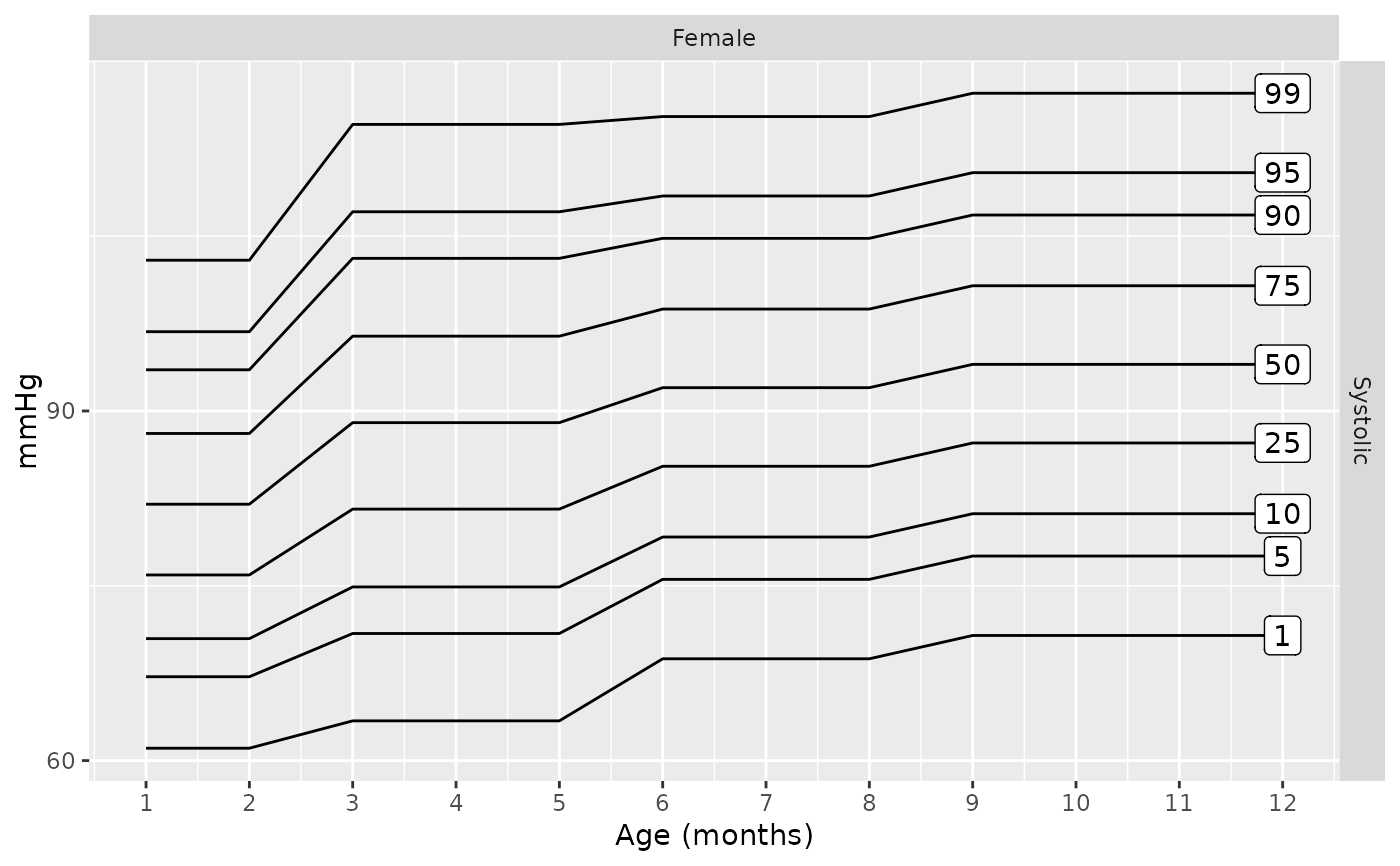

bp_chart("sbp", male = 0, source = "gemelli1990")

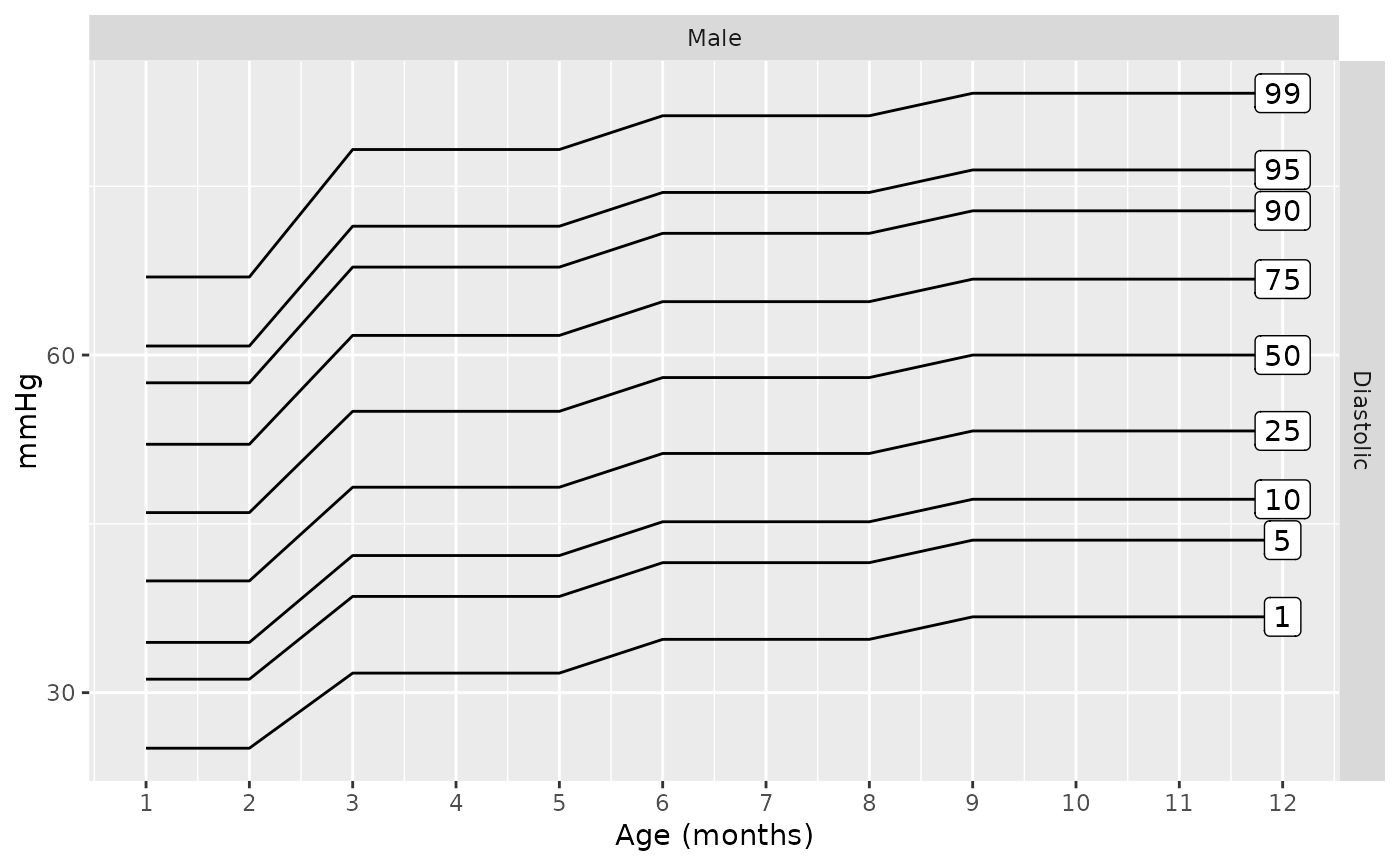

bp_chart("dbp", male = 1, source = "gemelli1990")

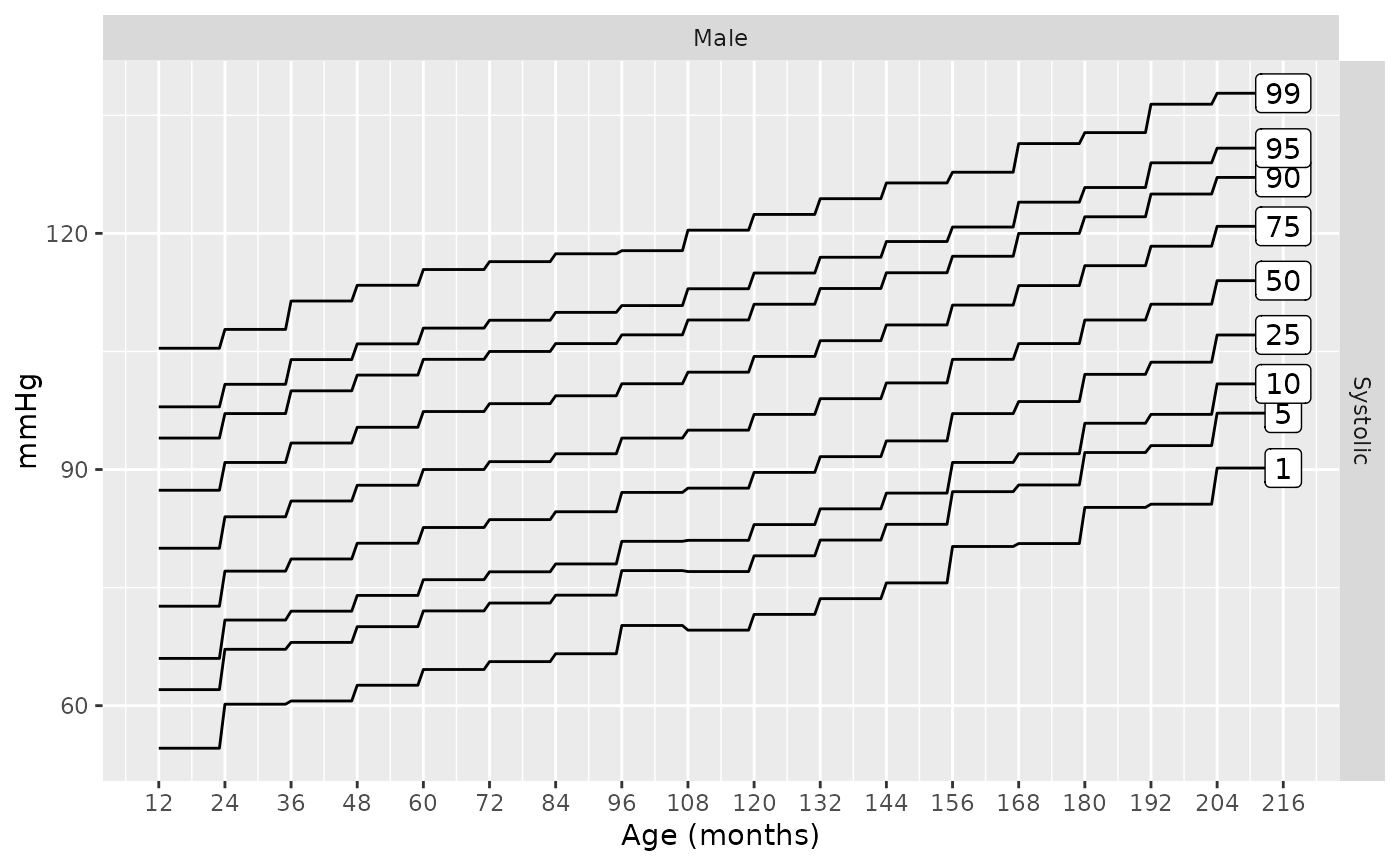

bp_chart("sbp", male = 1, source = "nhlbi")

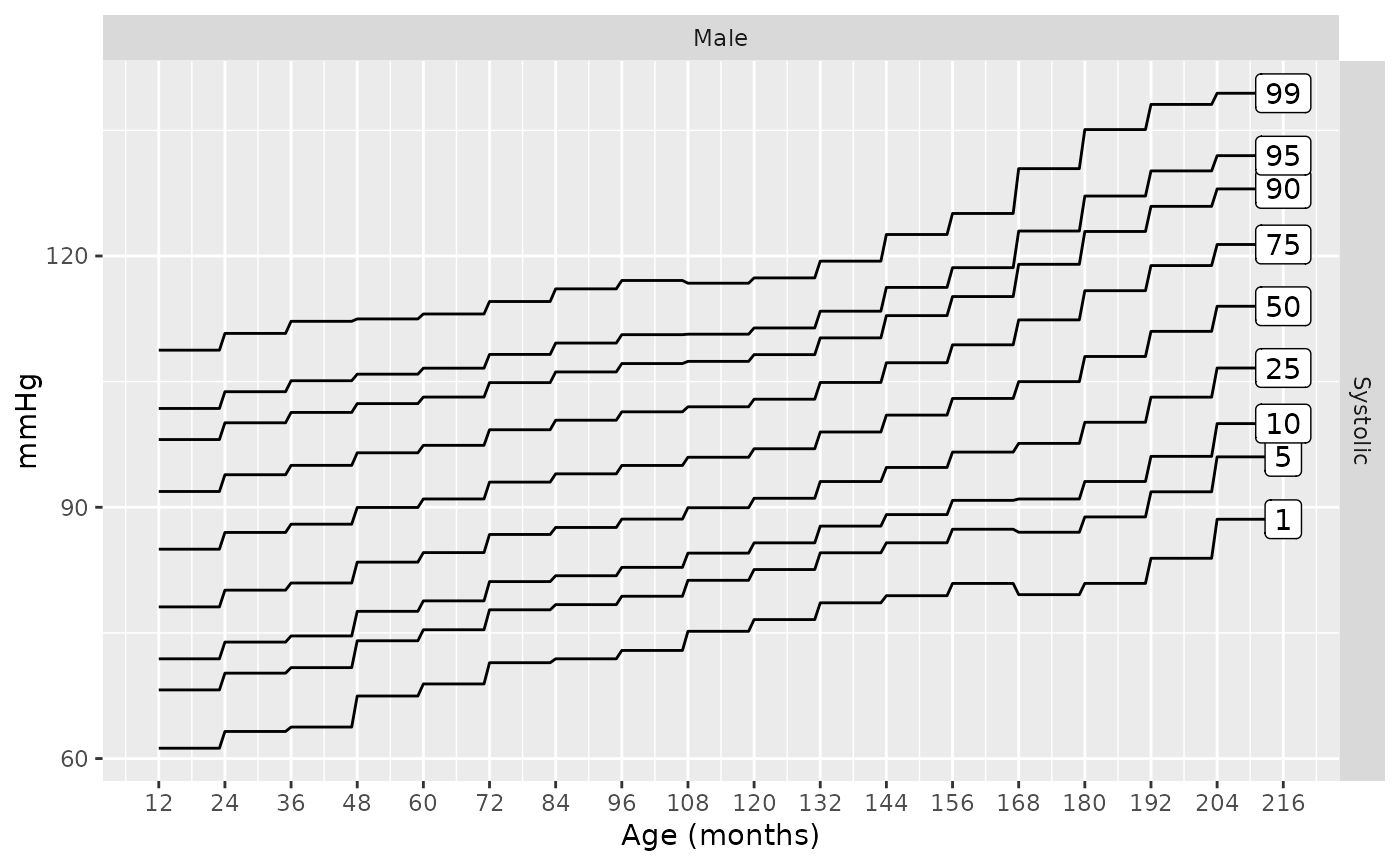

bp_chart("sbp", male = 1, source = "flynn2017")


# if you want to modify the plot, it might be helpful to see the data it is
# based on
g <- bp_chart(male = 1)
head(g$data)
#>   age male height height_percentile    p     mmHg      source plab       bp
#> 1   1    1     NA                NA 0.01 60.73652 gemelli1990    1 Systolic
#> 2   2    1     NA                NA 0.01 60.73652 gemelli1990    1 Systolic
#> 3   3    1     NA                NA 0.01 66.41017 gemelli1990    1 Systolic
#> 4   4    1     NA                NA 0.01 66.41017 gemelli1990    1 Systolic
#> 5   5    1     NA                NA 0.01 66.41017 gemelli1990    1 Systolic
#> 6   6    1     NA                NA 0.01 75.06287 gemelli1990    1 Systolic

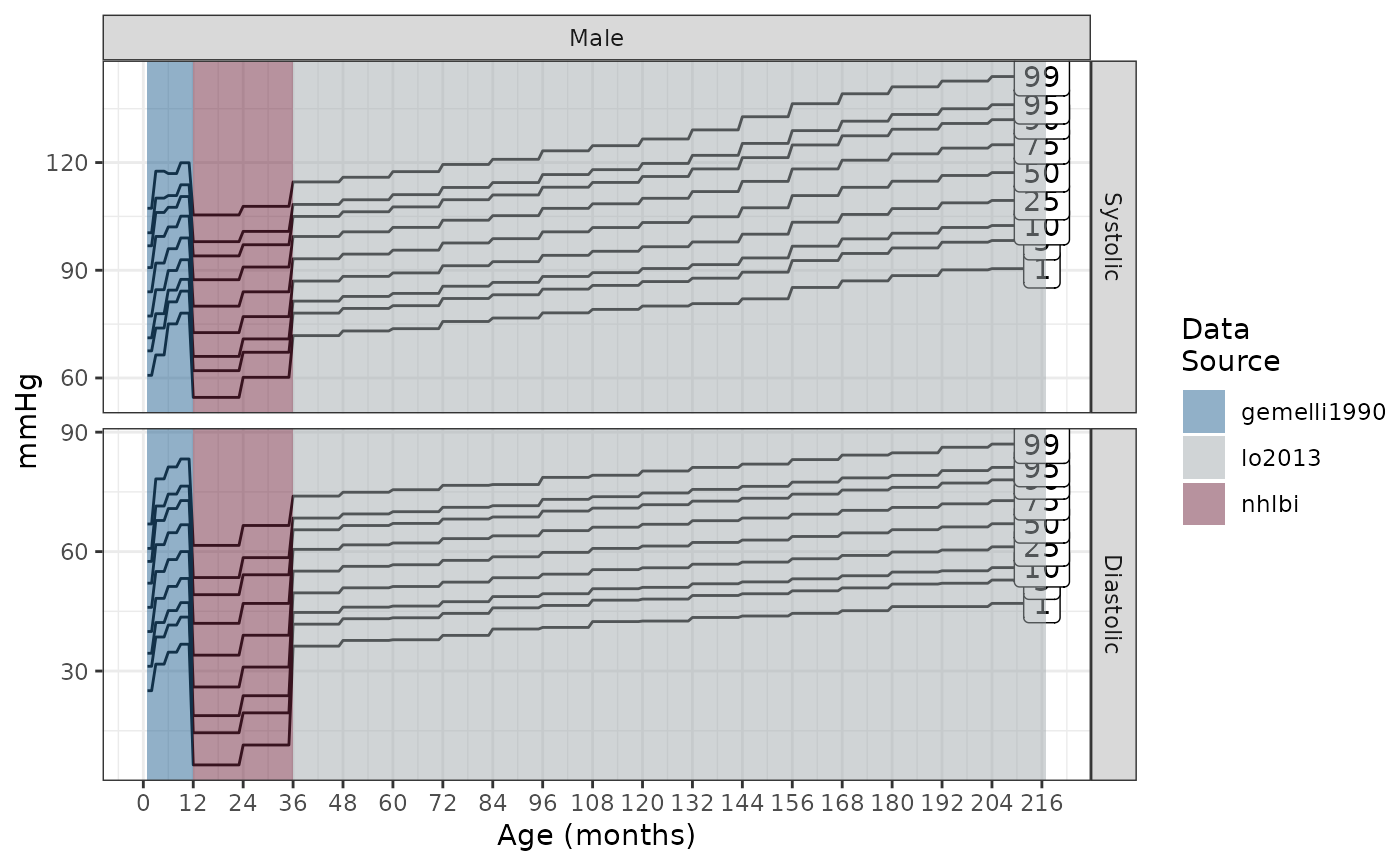

# here we color the background to show the source reference values
bkgrnd <- aggregate(x = age ~ male + bp + source, data = g$data, FUN = range)

g +
  ggplot2::theme_bw() +
  ggplot2::geom_rect(
    data = bkgrnd,
    mapping = ggplot2::aes(xmin = age[, 1],
                           xmax = age[, 2] + 1,
                           ymin = -Inf,
                           ymax = Inf,
                           fill = source)
  ) +
  ggplot2::scale_fill_manual(
    name = "Data\nSource",
    values = c("gemelli1990" = ggplot2::alpha("#236192", 0.5)
               , "nhlbi"  = ggplot2::alpha("#6F263D", 0.5)
               , "lo2013"     = ggplot2::alpha("#A2AAAD", 0.5)
               ))
