Plot the CDF for blood pressure given age, sex, and height.

Usage

bp_cdf(...)

# S3 method for class 'pedbp_bp'
bp_cdf(x, ...)

# S3 method for class 'pedbp_p_bp'
bp_cdf(x, ...)

# S3 method for class 'pedbp_q_bp'
bp_cdf(x, ...)

# Default S3 method
bp_cdf(
  age,
  male,
  height = NA,
  height_percentile = 0.5,
  source = getOption("pedbp_bp_source", "martin2022"),
  sbp = NA,
  dbp = NA,
  ...
)

Arguments

...

not currently used

x

a pedbp_bp object created by q_bp or p_bp.

age

numeric age, in months

male

integer value, 1 = male, 0 = female

height

numeric, in centimeters, can be missing. See Details.

height_percentile

height percentile to use; range from [0, 100]. See Details.

source

the method, or data set, to use as the reference. See Details.

sbp

the observed systolic blood pressure

dbp

the observed diastolic blood pressure

Value

When passing in a pedbp_bp object, the return is a list of ggplot objects. The length of the list is equal to the length of the number of quantiles or percentiles within the pedbp_bp object.

When using the default method the return is just a ggplot object showing the CDF for diastolic and systolic blood pressures with vertical and horizontal lines highlight the percentile for the given inputs.

Examples


# Explicity defining the inputs
bp_cdf(age = 96, male = 1, sbp = 103, dbp = 55)

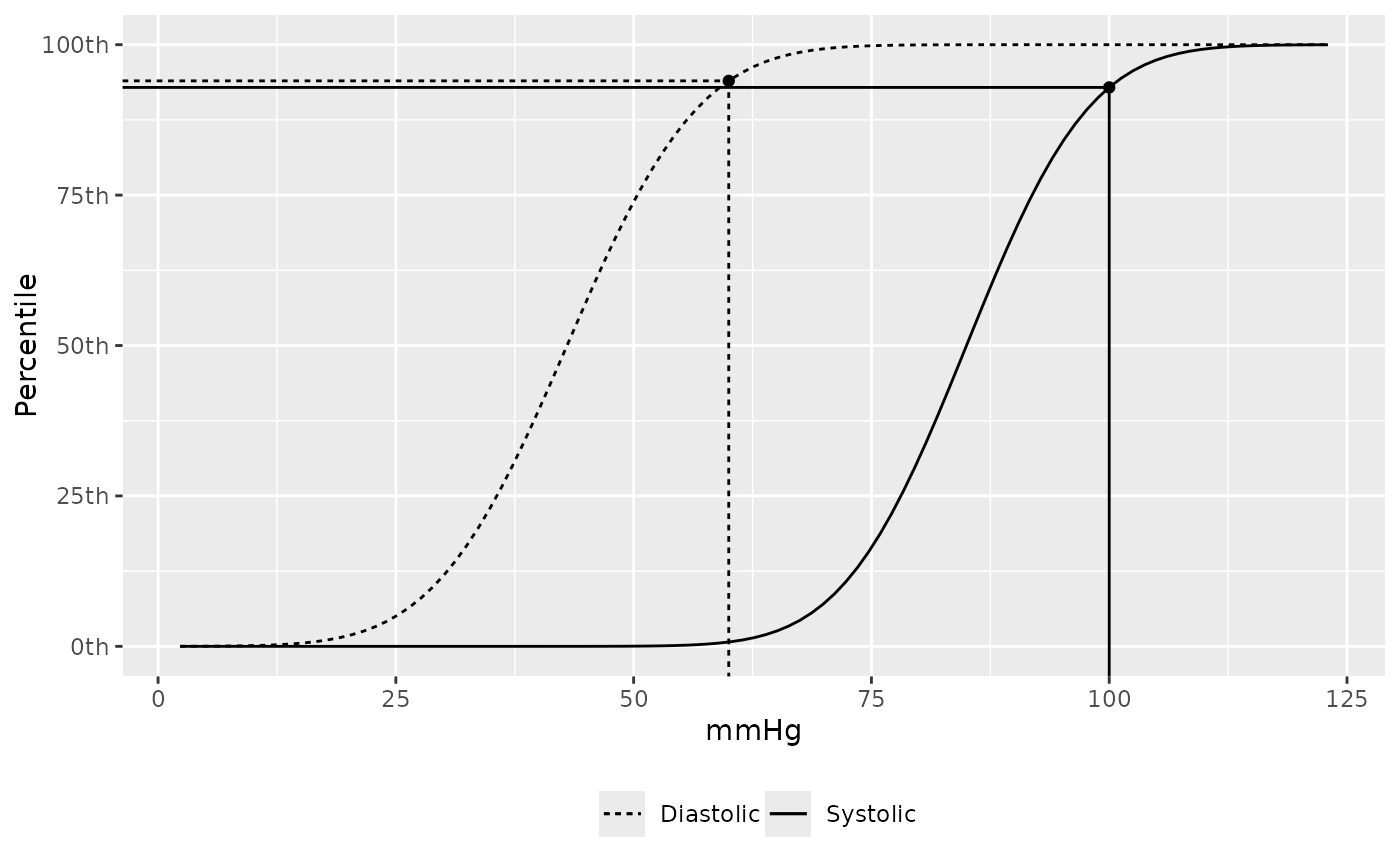

# Plotting two cdfs from a call to p_bp
x <- p_bp(q_sbp = rep(100, 2),
          q_dbp = rep( 60, 2),
          age   = rep(35.75, 2),
          male  = c(0, 0),
          height = c(NA, 100))

bp_cdf(x)
#> [[1]]

#>
#> [[2]]

#>

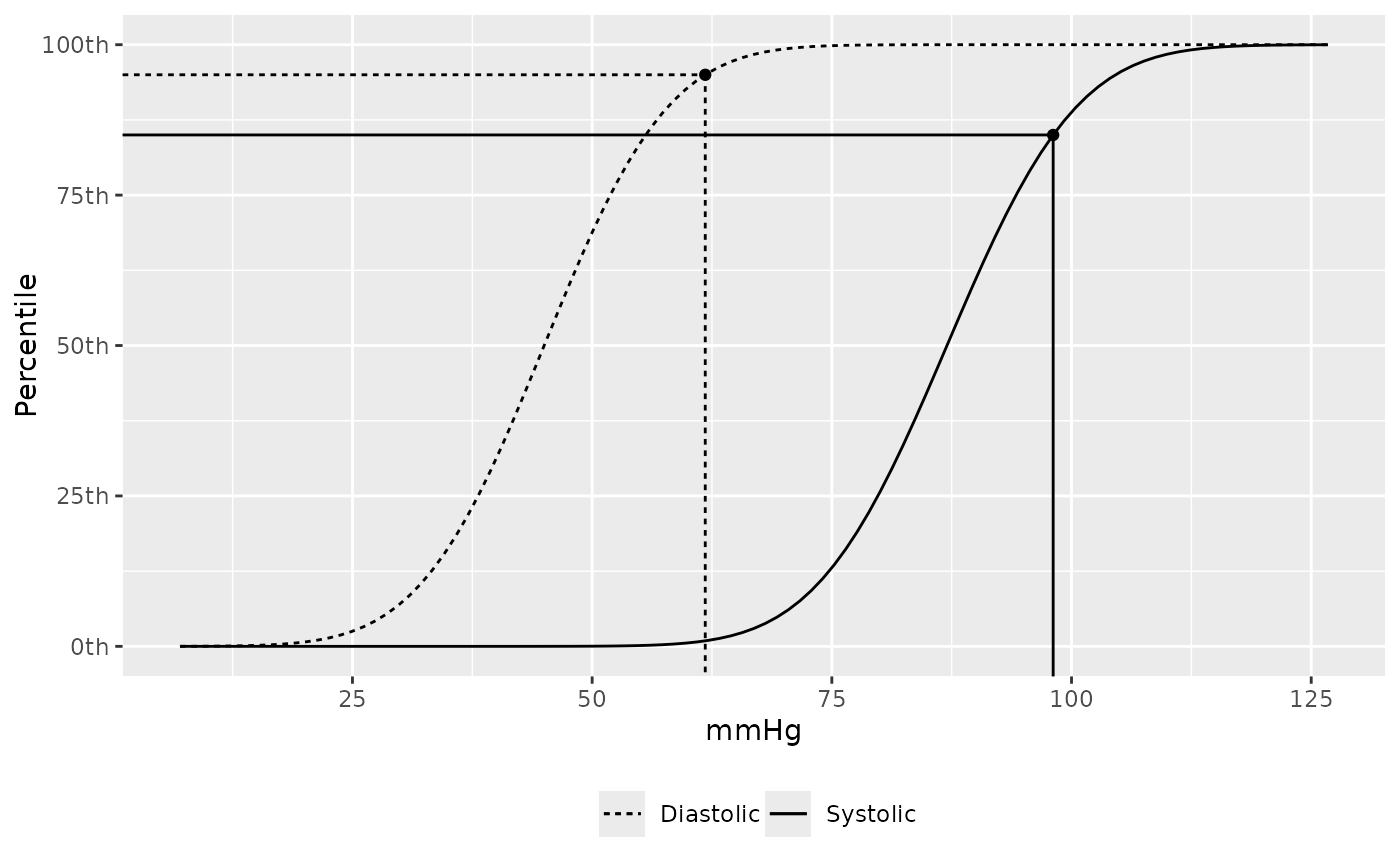

# Plotting a cdf from a call to q_bp
x <- q_bp(p_sbp = 0.85, p_dbp = 0.95,
          age = 29.2, male = 0, height_percentile = 0.95,
          source = "flynn2017")

bp_cdf(x)
#> [[1]]

#>
